An Open-Source Benchmark Suite of 3D-IC Testcases

By Rohan Soni, Jooyeon Jeong, Alexander Graening, Anthony Foo, Richard Chen, Puneet Gupta
University of California, Los Angeles, USA

Abstract

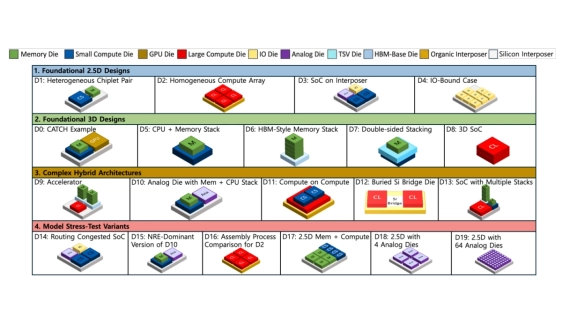

The physical design community has benefited from standardized, publicly available benchmark suites, which have enabled reproducible evaluation and driven significant advances in 2D place-and-route algorithms over the past three decades. However, the emergence of 3D heterogeneous integration technologies, including through-silicon vias (TSVs), hybrid bonding, and chiplet-based architectures, has introduced new physical design challenges that are not captured by existing planar benchmarks. Although several 3D-IC design examples have been reported, publicly accessible and scalable benchmark suites that enable reproducible evaluation across different 3D physical design problems remain limited. In this paper, we present an open-source suite of 3D-IC benchmark testcases derived from representative chiplet-based case studies in CATCH, an open-source framework for estimating the cost of heterogeneous integration architectures. The proposed benchmark suite provides reusable virtual chiplet models covering compute, memory, I/O, analog, and substrate components. Each testcase captures essential physical design characteristics of 3D systems, including heterogeneous die integration, inter-die connectivity, and technology-dependent design constraints. By publicly releasing these benchmarks, we aim to establish a common evaluation platform and accelerate community-wide research progress in 3D heterogeneous integration.
